Sprinter Van Conversion Windows

Sprinter Van Conversion Windows (First Generation 2000 – 2006)

windows for mercedes sprinter conversion

Dear Valued Customer,

We appreciate your support of our family run business of over 30 years! The Motion Windows Team looks forward to upgrading your Sprinter Van conversion, with our market leading handcrafted windows.Your new windows are manufactured with high quality powder coated aluminum to protect against corrosion; in addition to, ¼” tempered safety glass glass, all cut with bulletproof precision in-house.

All Sprinter side windows are built in a t-slide arrangement, where the top half of the window is fixed; while the bottom portion of the window has two seperate pieces of glass giving you the ability to slide open the window!

As a couple standard options your new window will come equipt with a fully custom sliding screen, and a very unique machine pressed and bent interior clamp-ring that solidifies the Motion Window to your van. To top it off, you will receive color keyed, marine grade stainless steal screws for easy installation.

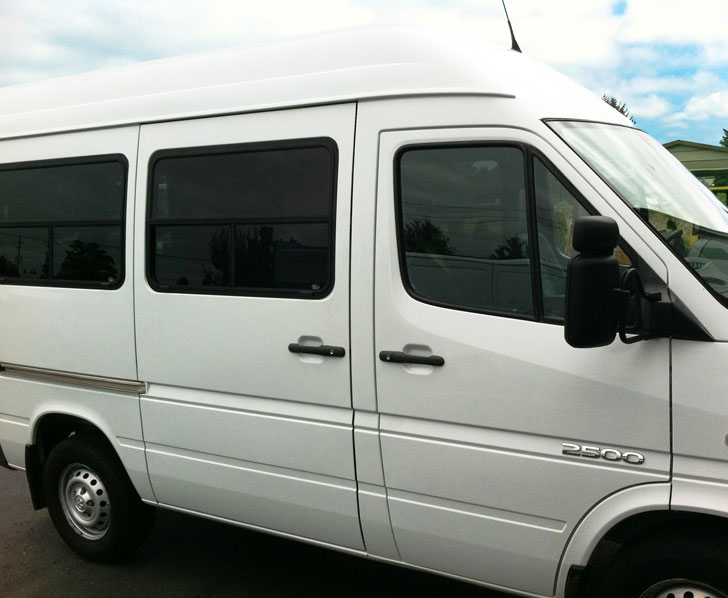

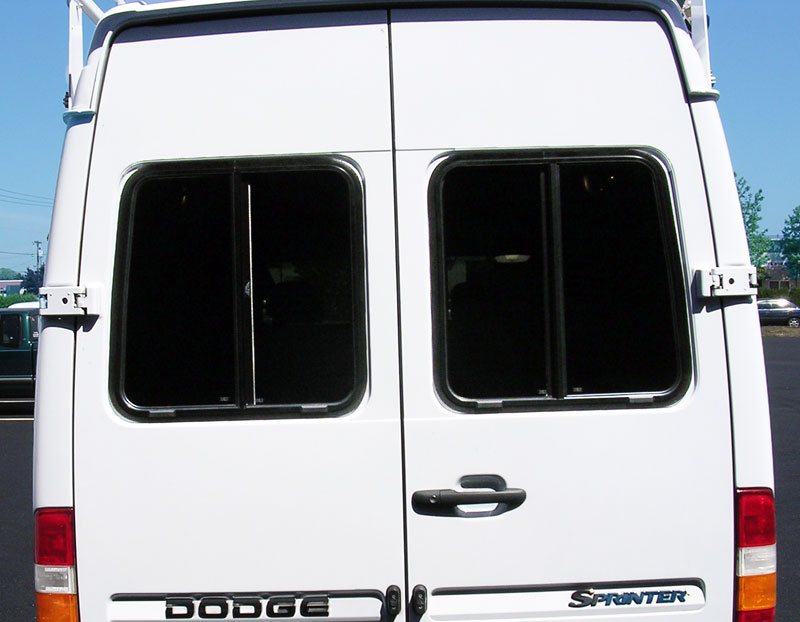

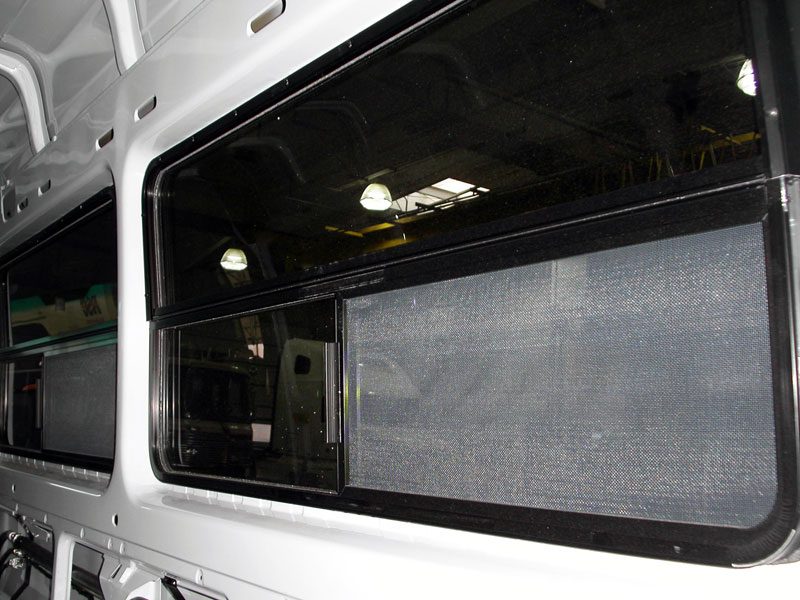

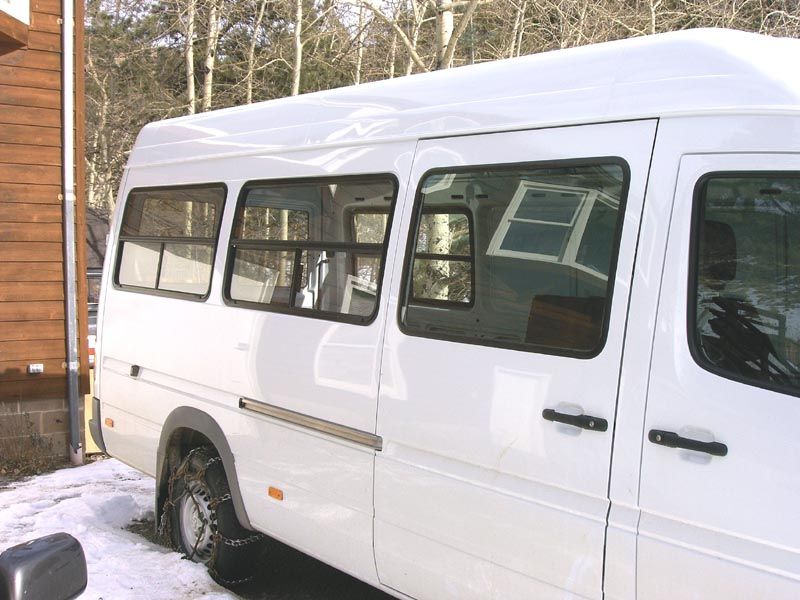

Below are some photos of some recently completed projects and an in-depth downloadable installation guide.

We look forward to enhancing your Sprinter Van conversion experience by making sure you are fitted with the very best windows sold on the market at a value you will appreciate.
With over 30 years of experience in the industry, our reputation as the leader in quality is unmistakable. The windows we offer for the various Sprinter models are all uniquely custom manufactured and built to order.

These Sprinter Van Windows are manufactured using high quality automotive powder coated aluminum extrusions and suited with either 1/4” safety glass dark gray (standard) or clear (upon request) solid tempered safety glass. All Sprinter side windows are built in a t-slide configuration-the top half of the window is fixed-the bottom half slides horizontally (see attached pictures for details). Standard features of the Sprinter windows include sliding screens, interior clamp-rings and black color keyed stainless steel screws for installation. Attached are some photos of some recently completed projects and some basic installation guidelines.



For other van conversion windows: Aftermarket Ford Transit Van Conversion WindowsRam ProMaster Van Conversion Window , Van Conversion WindowsSprinter Van Conversion Windows (New Gen)

Specification Detail

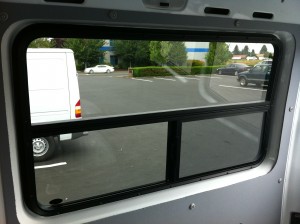

004

  • Glass: 1/4″ tempered glass
  • Glass Tint: Dark Gray (standard) or Clear (upon request)
  • Frame: Powder-Coat  Black
  • Standard Amenities: Sliding removable screen




Installation Resources




Installation Instructions


Van Converters & Upfitters Map

Van Converters & Upfitters Map



Pricing


Sprinter-SS


SKU# Sprinter-SS
Fits All Wheel Bases - Half-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 35-3/4" x 9-3/4
Exterior Flange Dimensions (W x H): 37-1/4" x 11-1/4
Price: $315.00 ea.

118" Wheel base


SKU# 118-1
118" Wheel Base Sprinter Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 39-5/8" x 23-1/2
Exterior Flange Dimensions (W x H): 41-1/8" x 25
Price: $478.00 ea.
SKU# 118-2
118" Wheel Base Sprinter Side Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 41-3/8" x 23-1/2
Exterior Flange Dimensions (W x H): 42-7/8" x 25
Price: $486.00 ea.
SKU# 118-3
118" Back Door Half-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 23-9/16" x 23-5/16
Exterior Flange Dimensions (W x H): 25-1/16" x 24-13/16
Price: $413.00 ea.

140" Wheel base


SKU# 140-1
140" Wheel Base Sprinter Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 39-5/8" x 23-1/2
Exterior Flange Dimensions (W x H): 41-1/8" x 25
Price: $478.00 ea.
SKU# 140-2
140" Wheel Base Sprinter Side Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 41-3/8" x 23-1/2
Exterior Flange Dimensions (W x H): 42-7/8" x 25
Price: $486.00 ea.
SKU# 140-3
140" Wheel Base Sprinter Rear Side Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 70-7/8" x 23-1/2
Exterior Flange Dimensions (W x H): 72-3/8" x 25
Price: $625.00 ea.
SKU# 140-4
140" Back Door Half-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 23-9/16" x 23-5/16
Exterior Flange Dimensions (W x H): 25-1/16" x 24-13/16
Price: $413.00 ea.

144" Wheel base


SKU# 144-1
144" Wheel Base Sprinter Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 42" x 23-1/2
Exterior Flange Dimensions (W x H): 43-1/2" x 25
Price: $548.00 ea.
SKU# 144-2
144" Wheel Base Sprinter Front Quarter Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 42" x 23-1/2
Exterior Flange Dimensions (W x H): 43-1/2" x 25
Price: $548.00 ea.
SKU# 144-3
144" Rear Quarter Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 51-3/16" x 23-1/2
Exterior Flange Dimensions (W x H): 52-11/16" x 25
Price: $532.00 ea.

158" Wheel base


SKU# 158-1
158" Wheel Base Sprinter Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 39-5/8" x 23-1/2
Exterior Flange Dimensions (W x H): 41-1/8" x 25
Price: $478.00 ea.
SKU# 158-2
158" Wheel Base Sprinter Side Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 41-3/8" x 23-1/2
Exterior Flange Dimensions (W x H): 42-7/8" x 25
Price: $486.00 ea.
SKU# 158-3
158" Wheel Base Sprinter Side Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 51-3/16" x 23-1/2
Exterior Flange Dimensions (W x H): 52-11/16" x 25
Price: $532.00 ea.
SKU# 158-4
158" Back Door Half-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 23-9/16" x 23-5/16
Exterior Flange Dimensions (W x H): 25-1/16" x 24-13/16
Price: $413.00 ea.

170" Wheel base


SKU# 170-1
170" Wheel Base Sprinter Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 42" x 23-1/2
Exterior Flange Dimensions (W x H): 43-1/2" x 25
Price: $548.00 ea.
SKU# 170-2
170" Front Quarter Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 42" x 23-1/2
Exterior Flange Dimensions (W x H): 43-1/2" x 25
Price: $548.00 ea.
SKU# 170-3
170" Middle or Rear Quarter Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 36-7/8" x 23-3/8
Exterior Flange Dimensions (W x H): 38-3/8" x 24-7/8
Price: $464.00 ea.

* Doors with manual lock pulls may require removal or modification at the time of install.  Automatic locks are typically used instead of manual pull locks in this application.
**Please note back door windows are not direct replacement and will require some modification of the rough opening. Please contact us if you need further explanation of this process.
