Ford Transit Van Conversion Windows

Aftermarket Ford Transit Van

Ford Transit Van Aftermarket Conversion Windows
(4th Gen 2013 – Present)

Ford Transit Van Conversion Windows

These windows are manufactured as an aftermarket add-on. They are not intended in size to replace any factory glass or pre-existing windows. We look forward to enhancing your Ford Transit van conversion experience by making sure you are fitted with the very best windows sold on the market at a value you will appreciate. With over 40 years of experience in the industry, our reputation as the leader in quality is unmistakable. The Transit windows we offer for the various cargo van models for the fourth generation van (2013 – Present) are all uniquely custom manufactured and built to order.

New windows for your Transit are manufactured using high quality automotive powder coated aluminum extrusions and suited with dark automotive greylite 14 tinted (standard) or clear (upon request) 1/4″ solid tempered safety glass. Because of the unique sidewall curvature of cargo vans, our aftermarket Transit windows are built in a t-slide configuration to accommodate this curvature—the top half of the window is fixed—the bottom half slides horizontally (see attached pictures for details). Standard features of the windows include sliding screens, interior clamp-rings and black color keyed stainless steel screws for installation.

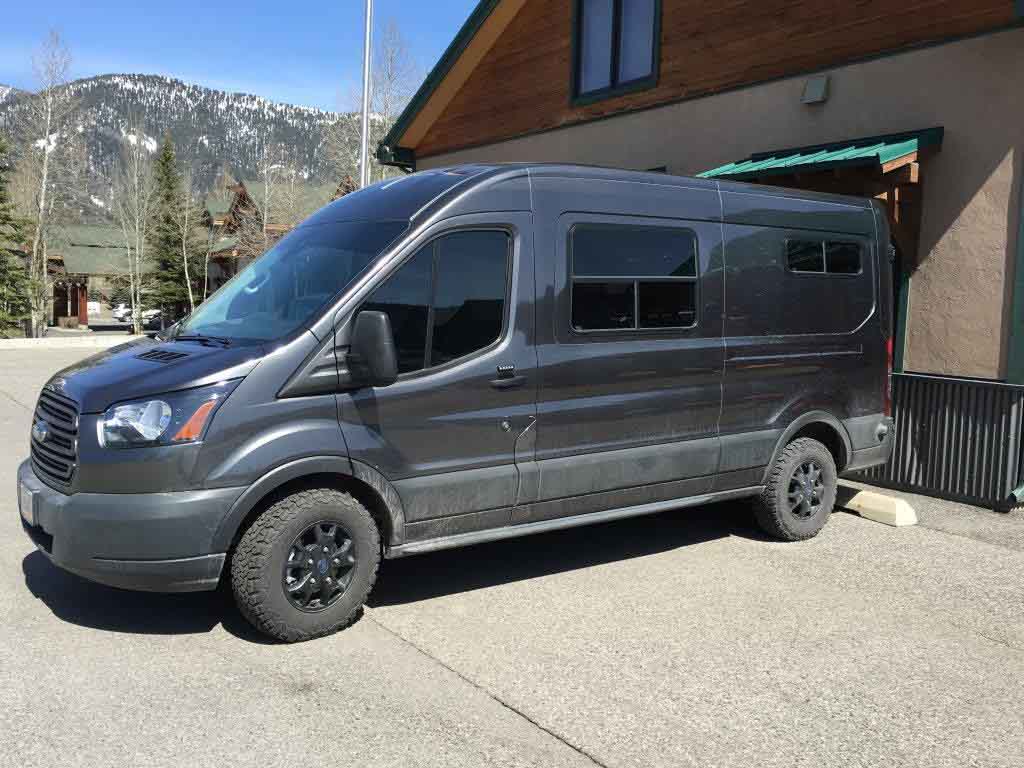

Transit in Big Sky

Specification Details

  • Glass: 1/4″ tempered glass
  • Glass Tint: Dark Grey (Standard) or Clear (Upon Request)
  • Frame: Powder-Coat  Black
  • Standard Amenities: Sliding removable screen
Gray Ford Transit Van





Installation Resources




Installation Instructions


Van Converters & Upfitters Map

Van Converters & Upfitters Map



Pricing

Caution: These Parts Do Not Replace Factory Glass.


Transit-SS


SKU# Transit-SS
Fits All Models - Half-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 35-3/4" x 9-3/4
Exterior Flange Dimensions (W x H): 37-1/4" x 11-1/4
Price: $315.00 ea.

Low Roof Regular


SKU# Low Transit-1
Low Roof Transit Front Quarter Panel T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 38-5/16" x 14-7/8
Exterior Flange Dimensions (W x H): 39-13/16" x 16-3/8
Price: $467.00 ea.
SKU# Low Transit-2
Low Roof Transit Front Quarter Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 38-5/16" x 16-1/2
Exterior Flange Dimensions (W x H): 39-13/16" x 18
Price: $479.00 ea.
SKU# Low Transit-3
Low Roof Transit Rear Quarter Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 25" x 16-1/2
Exterior Flange Dimensions (W x H): 26-1/2" x 18
Price: $368.00 ea.

Low Roof Long


SKU# Low Transit-1
Low Roof Transit Front Quarter Panel T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 38-5/16" x 14-7/8
Exterior Flange Dimensions (W x H): 39-13/16" x 16-3/8
Price: $467.00 ea.
SKU# Low Transit-2
Low Roof Transit Front Quarter Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 38-5/16" x 16-1/2
Exterior Flange Dimensions (W x H): 39-13/16" x 18
Price: $479.00 ea.
SKU# Low Transit-3
Low Roof Transit Rear Quarter Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 25" x 16-1/2
Exterior Flange Dimensions (W x H): 26-1/2" x 18
Price: $368.00 ea.

Medium Roof Regular


SKU# Transit-1
Medium & High Roof Transit Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H): 42-1/8" x 25-3/8
Price: $545.00 ea.
SKU# Transit-2
Medium & High Roof Transit Front Quarter Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H): 42-1/8" x 25-3/8
Price: $545.00 ea.
SKU# Med Transit-3REG
Medium Roof Transit Rear Quarter Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 32-7/8" x 23-3/8
Exterior Flange Dimensions (W x H): 34-3/8" x 24-7/8
Price: $446.00 ea.

Medium Roof Long


SKU# Transit-1
Medium & High Roof Transit Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H): 42-1/8" x 25-3/8
Price: $545.00 ea.
SKU# Transit-2
Medium & High Roof Transit Front Quarter Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H): 42-1/8" x 25-3/8
Price: $545.00 ea.
SKU# Med Transit-3LONG
Medium Roof Transit Rear Quarter Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 43-7/8" x 23-3/8
Exterior Flange Dimensions (W x H): 45-3/8" x 24-7/8
Price: $497.00 ea.

High Roof Long


SKU# Transit-1
Medium & High Roof Transit Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H): 42-1/8" x 25-3/8
Price: $545.00 ea.
SKU# Transit-2
Medium & High Roof Transit Front Quarter Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H): 42-1/8" x 25-3/8
Price: $545.00 ea.
SKU# High Transit-3
High Roof Transit Rear Quarter Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 36-7/8" x 23-3/8
Exterior Flange Dimensions (W x H): 38-3/8" x 24-7/8
Price: $464.00 ea.

High Roof Extended


SKU# Transit-1
Medium & High Roof Transit Side Door T-Slider
Position: Passenger
Interior Frame-Fit Dimensions (W x H): 40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H): 42-1/8" x 25-3/8
Price: $545.00 ea.
SKU# Transit-2
Medium & High Roof Transit Front Quarter Panel T-Slider
Position: Driver
Interior Frame-Fit Dimensions (W x H): 40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H): 42-1/8" x 25-3/8
Price: $545.00 ea.
SKU# High Transit-3 MID
High Roof Transit Mid Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 29" x 23-3/8
Exterior Flange Dimensions (W x H): 30-1/2" x 24-7/8
Price: $427.00 ea.
SKU# High Transit-3 REAR
High Roof Transit Rear Quarter Panel T-Slider
Position: Driver or Passenger
Interior Frame-Fit Dimensions (W x H): 36-7/8" x 23-3/8
Exterior Flange Dimensions (W x H): 38-3/8" x 24-7/8
Price: $464.00 ea.
